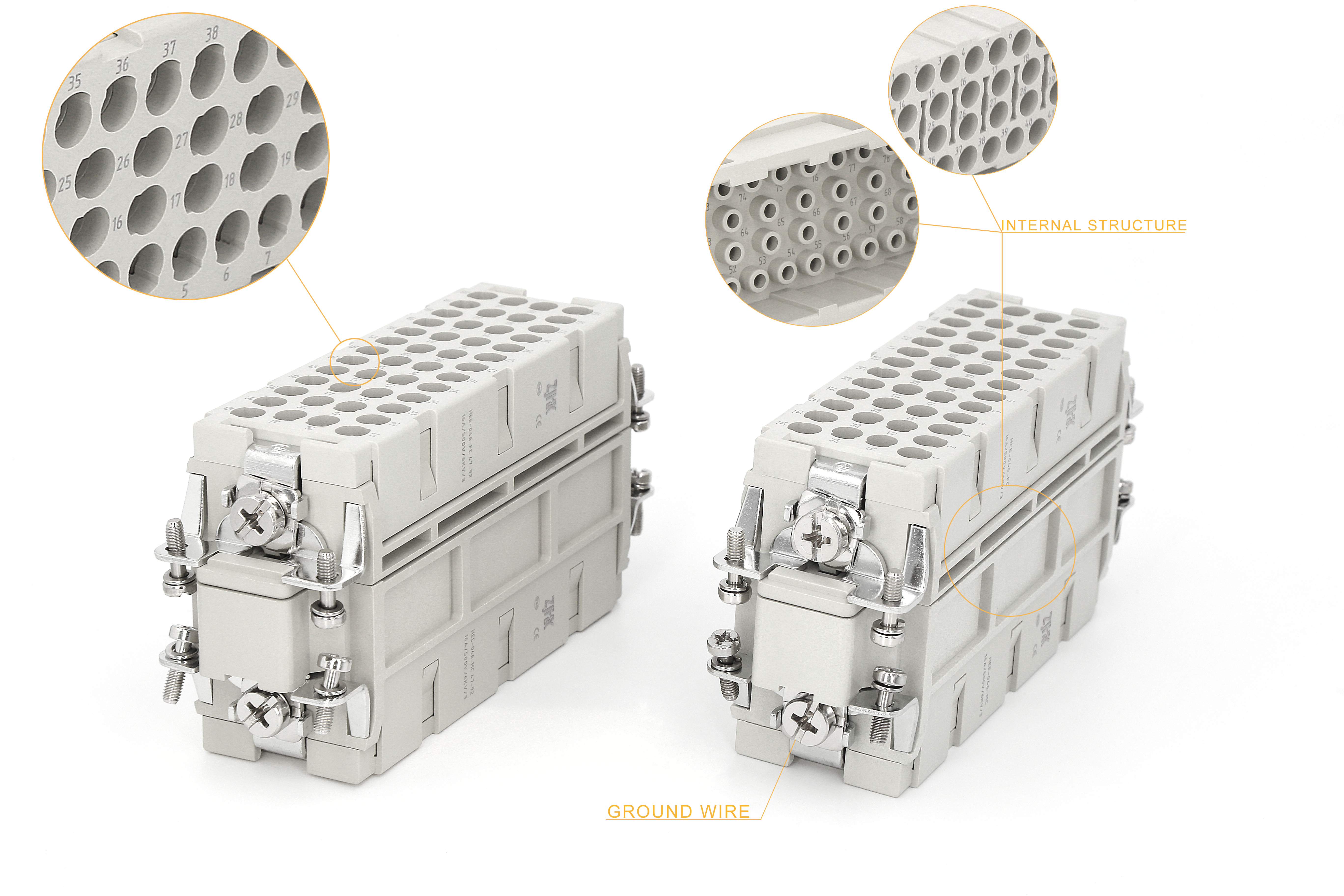

HEE 092 pin crimp industrial connector
Crimp Terminal (Order crimp contacts separately)
| Standards / approvals | HEE High Density Insert |
| Descriptions | Heavy Duty High Density Insert, 2x(46 + PE), 16 A, Male Crimp Terminal |

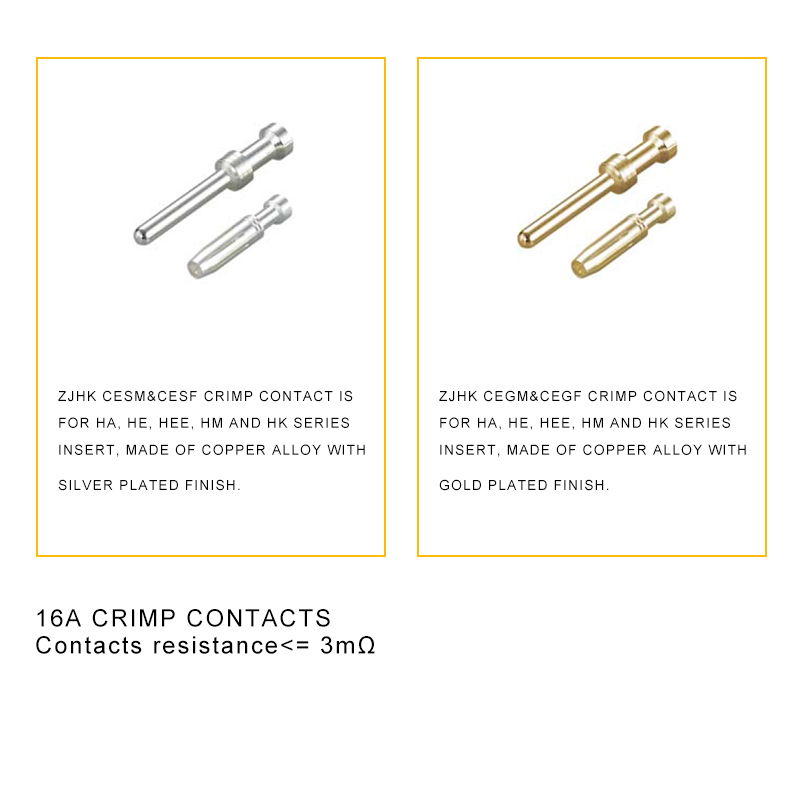

| Suitable Crimp Contact | CESM, CEGM |
| The need for additional or dering crimp contacts | Yes, 16A contacts |
| Number. of poles | 2x(46 + PE) |
| Rated voltage | 500 V |
| Rated voltage to UL/CSA | 600 V |
| Rated current | 16 A |
| Pollution severity | Ⅲ |
| Insulation resistance | ≥ 10^10 Ω |
| Materia of inserts | Glass-fibre reinforced PC (in UL list and approved for railway applications) |
| Mechanical service life | |
| – Plugging cycles Ag - Surface | ≥ Five hundred |
| – Plugging cycles Au - Surface | ≥ Five hundred |
| Contact resistance | |
| Crimp connection | ≤ 3 mΩ |
| Contacts / Material | |
| Sockets and plug-in contact | Copper alloy |
| Surface | Passivated silver, or gold-plated |
| Crimp connection | |
| – Flexible conductor connection | 0.14 - 4 mm2 (AWG 26...12) |
| – Stripping length | 7,5 mm |
| PE connection | |
| – Clamping range | 0.14 … 4 mm2 |
| – solid / stranded | 0.14 … 4 mm2/0.14 … 4 mm2 |
Note: When used properly and as designated, the listed connectors may not be connected or disconnected if there is a live voltage or load!
More details of inserts for your reference
Additional content
ZJHK HEE 064 Pin crimp connector Usually used for robotic arms, integrated control cabinets, test cabinets, etc.
It replaces the traditional cable connection method and quickly improves the connection efficiency of the work.
ZJHK Under the requirements of high production quality, it is possible to dock international major brand connectors or make alternatives.
We provide quality product quality and service.
Make industrial solutions for you quickly. Effectively improve efficiency and quality and reduce costs for your solution.
FAQ:
1.
Q:what’s your advantage compare with Harting,ILME,TE(SIBAS)?
A:Our HDC can replace Harting,ILME,TE(SIBAS)perfectly,most of clients who use those brand before,After the test ,they choose us.Also our price is lower than Harting 40-50%.
2.
Q:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A:Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.(Our catalogue is very large,so we usually send it by Pcloud or Wetransfer)
3.
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7 days will be no problem.And for regular order we promise in 10 days after payment .
4.
Warranty Time.
A:12 month. Any problem of the quality is changed by your next order free.
