HE 016 500 Volage 16 Hot Runner Temperature Connector Posheavy Duty Screw Termimal

Name: HE 016 500 Volage 16 Hot Runner Temperature Connector Posheavy Duty Screw Termimal
Brand: ZJHK
Price: 1 USD

China HE 016 500 Volage 16 Hot Runner Temperature Connector Posheavy Duty Screw Termimal wholesale

Brand Name : ZJHK

Model Number : HE-016-M

Certification : CE, RoHS, SGS, CQC,

Place of Origin : China

MOQ : 5

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 100,000 pcs per month

Delivery Time : 7 Days

Packaging Details : Standard Export Cartons

Order Number : 09330062716

Model Type : Standard Connector HE Series

Material : Polycarbonate Sabic 3412 ECR

Wire Connection : Cage-clamp termination

Housing : H6B Series

Nos of Contact : 6

Contact Now

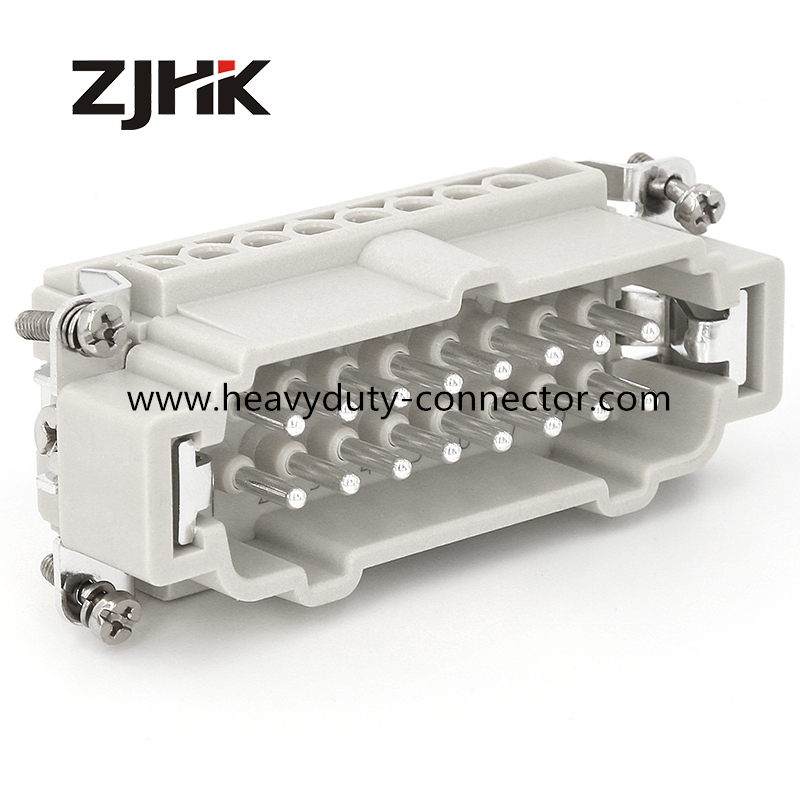

ZJHK HE-016-M 16Pin Industrial connector

connect machine with controller

Part number:09330162601

Technical data

Category	Inserts
Type	HE SERIES
Version
Termination method	Screw termination
Gender	Male
Size	16B
With wire protection	Yes
PE contact	Yes
Technical characteristics
Conductor cross-section	0.14 ... 2.5 mm²
Rated current	16A
Rated voltage	500 V
Rated impulse voltage	6 kV
Rated voltage acc. to UL	600V
Insulation resistance	> 10¹⁰ Ω
Contact resistance	≤ 1 mΩ
Mating cycles	≥ 500
Material (insert)	Polycarbonate
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated and Gold plated
Material flammability class acc. to UL 94	V-0

MORE DEATILS:
HE 016 500 Volage 16 Hot Runner Temperature Connector Posheavy Duty Screw Termimal

Perfect for Hot runnber connector 16Amp 16Pin

HE 016 500 Volage 16 Hot Runner Temperature Connector Posheavy Duty Screw Termimal

Services

1. We are professional supplier,so we provide Low MOQ: It can meet your business very well.

2. We work with dozens of factories to ensure competitive price, We also will treat you as our friends.

3. Inspections:100% test before delivery.Package will do after several discussions with you.

4. Free samples for your test,The products are directly from our factory. So it saves a lot secondary cost.

5. OEM and ODM are acceptable,Please send us your design and other important information. OEM are always welcome.
